BASE

A workhorse tester with a first-rate pedigree

Developed by nok9, sole provider of compliance and reference tools for QI (BPP & EPP)

___________

Built for user frienly plug-and-play operations, without required indepht knowledge of specification

___________

Fully automatic testing with automatic compliance test report generation

___________

Able to test for both Extended and Baseline Power Profiles (EPP and BPP)

___________

Fully compliant with the WPC Power Class 0 specification

WIDE RANGE OF MEASUREMENTS

BASE shares DNA with other nok9 testers, but offers a simpler format for targeted testing. BASE is designed to achieve fast and accurate results with a focus on consistency, traceability, and supreme ease of use. Built-in features eliminate the need for external instruments while delivering clear, concise results. Easy to move, set up and operate, BASE is suitable for both lab applications as well as integration into production lines.

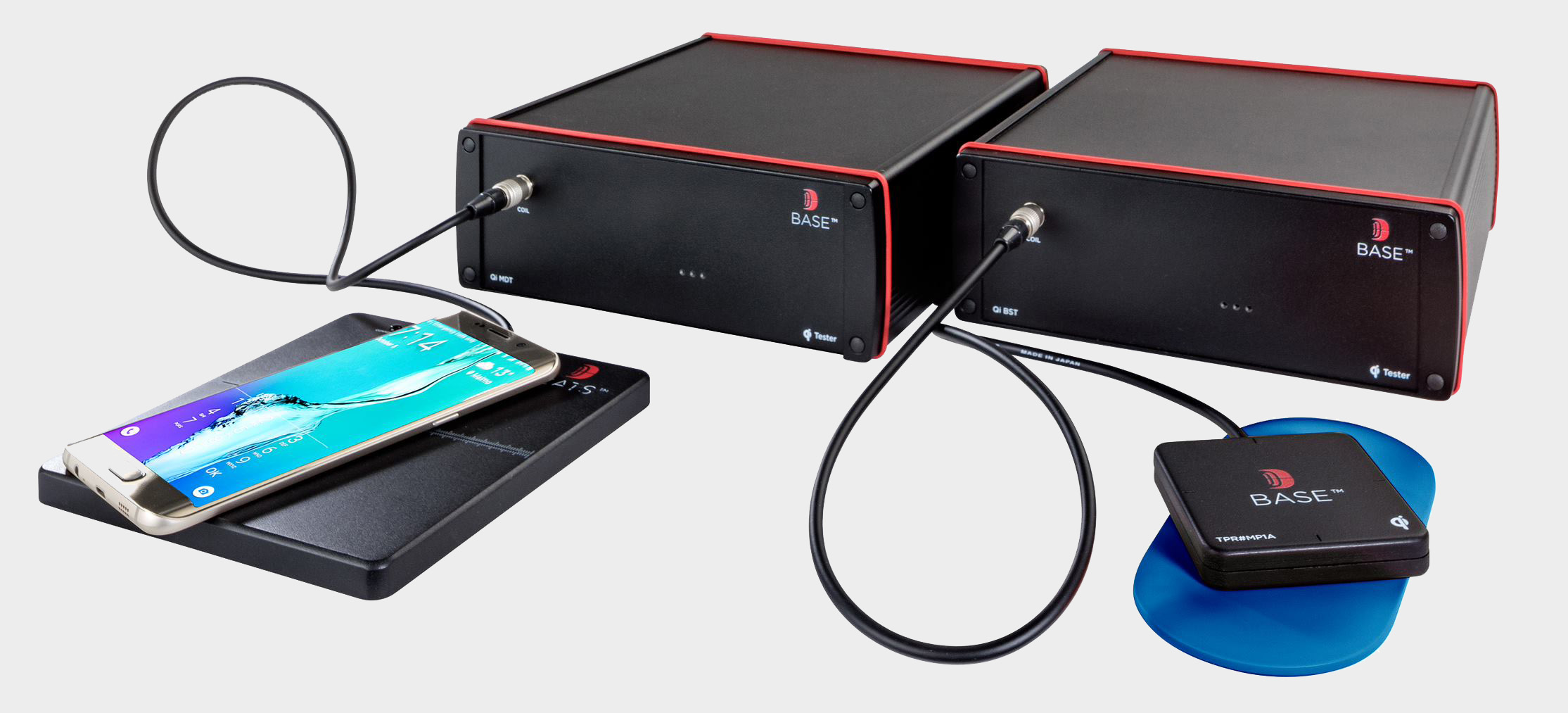

BASE MDT & BASE BST

BASE MDT with receiver under test

BASE BST with transmitter under test

SYSTEM OVERVIEWS

BASE BST

Base Station Tester

______________________________________________________________________________________

BASE MDT

Mobile Device Tester

TECHNICAL SPECIFICATIONS

_______________________

BASE MDT

Physical characteristics:

Width 210 mm
Height 75 mm
Length 220 mm
Weight 2 kg

BASE TPT

P (typical): 5.6 W
Coil diameter: 32 mm
Coil inductance: 24 +/- 1 nH
fs: 95 +/- 5 kHz

Physical characteristics:

Width 62 mm
Length 82 mm
Thickness 15 mm

BASE BST

Physical characteristics:

Width 210 mm
Height 75 mm
Length 220 mm
Weight 2 kg

BASE TPR

P (typical): 5.6 W
Coil diameter: 32 mm
Coil inductance: 24 +/- 1 nH
fs: 95 +/- 5 kHz

Physical characteristics:

Width 62 mm
Length 82 mm
Thickness 15 mm
